| Furnace tube size | Outer diameter250/ inner diameter 240/ length 600mm |
| Heating zone size | 400mm |
| Heating element | Infrared tube |
| Temperature measuring element | N-type temperature sensor (Omega) |
| Number of control segments | 30 segments |
| Control precision | ±1℃ |
| Maximum temperature | ≤1000℃ |
| Operating temperature | ≤900℃ |
| Heating rate | ≤20℃/min |
| Cooling method | Water cooling (flange, molecular pump) |
| Chiller | CW-5200 |
| Drive mode (automatic) | Electric (furnace tube/furnace body lifting, door opening and closing) Pneumatic (vacuum valve) |
| Vacuum pumping speed | 600L/S |
| Ultimate vacuum | 6×10-4 Pa ( =10-6 mbar) |
| Working vacuum | 6*10-3 Pa ( =10-5 mbar) |
| In/Out | Reserved air inlet and outlet (can be filled with inert gases such as Nitrogen and Argon) |
| Control method | Automatic/manual PLC control |
| Insulation method | 6-layer metal screen mirror reflection+ 2-layer tray |
| HMI | 10-inch touch screen |
| Maximum power | 10KW |
| Power supply | AC 220V 20KW |
| Total weight | 550KG |

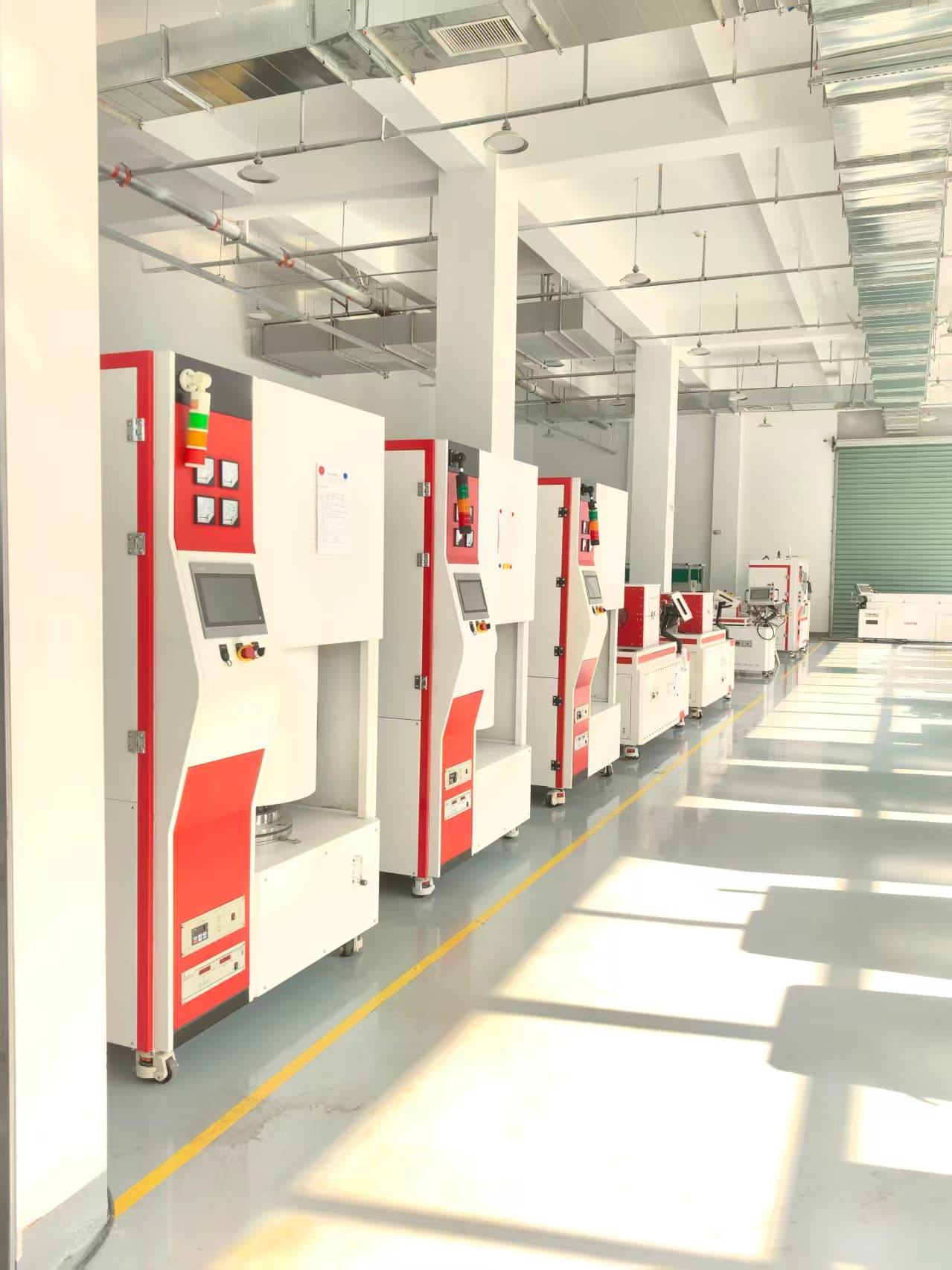

Vertical Vacuum Brazing Furnace
SERIES CODE: CUT250
The CUT200 high-vacuum tube furnace is heated by infrared lamps, the maximum temperature can reach 1000℃, and the temperature is controlled by 30 sections.
Quick Specs
Temperature Range1000° C
Heated Zone≤1000° C
WorkspaceΦ250/240×L600mm
Temperature Range1000° C
Thermal Stability± 0.5°C
Heating Rate15°C/min
Internal Volume24 Liters
Technical Documents
Tutorial
Technical Specifications

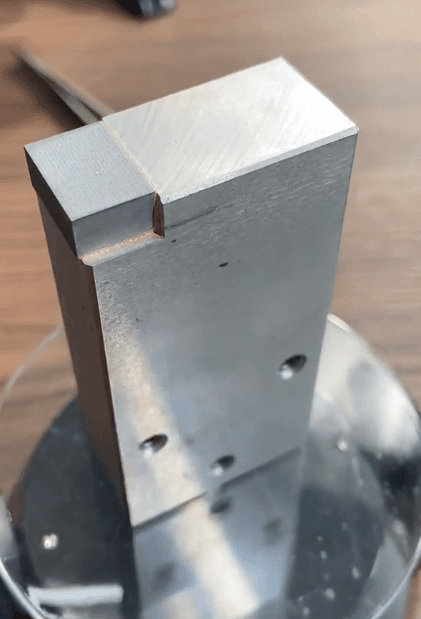

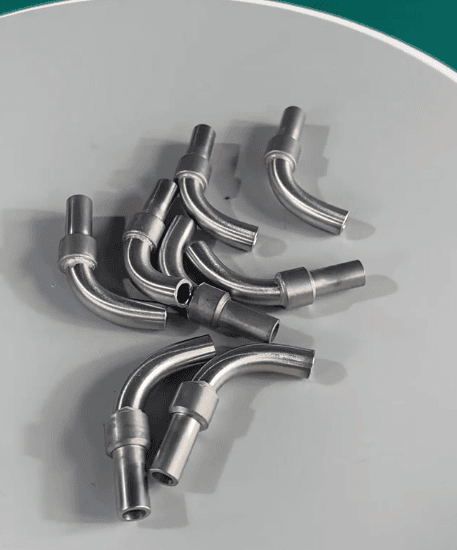

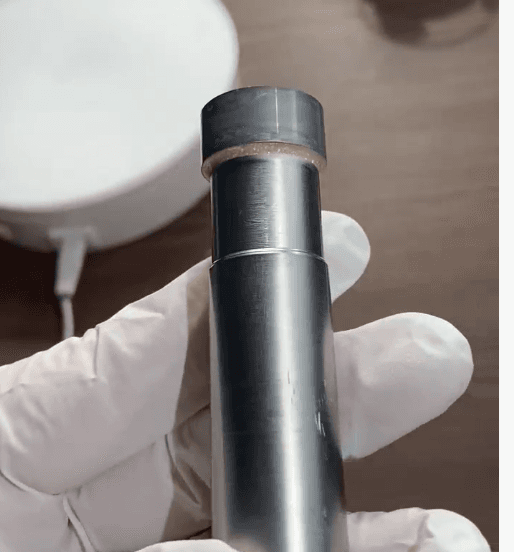

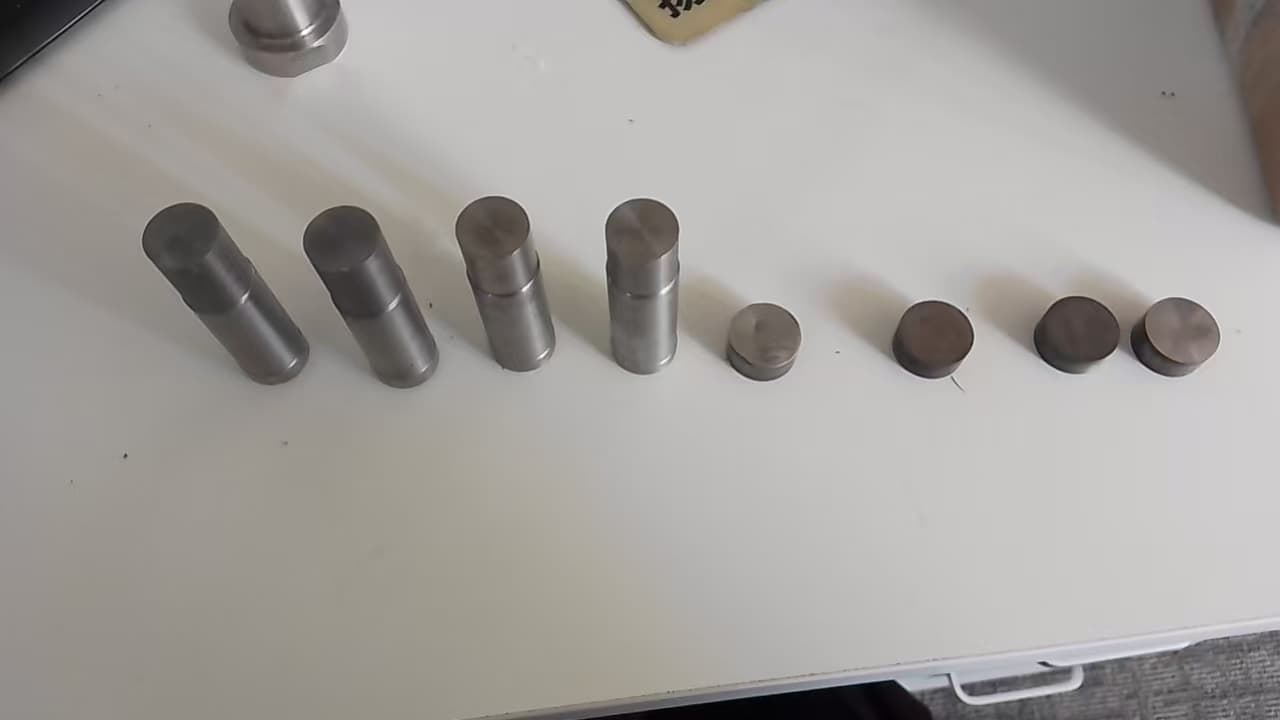

Customer Cases
Need a Custom Configuration?
Contact Our Engineers.
Our engineering team can tailor chamber sizes, atmospheric controls, and software integration to your exact specs.
