What is a Vacuum Hardening Furnace?

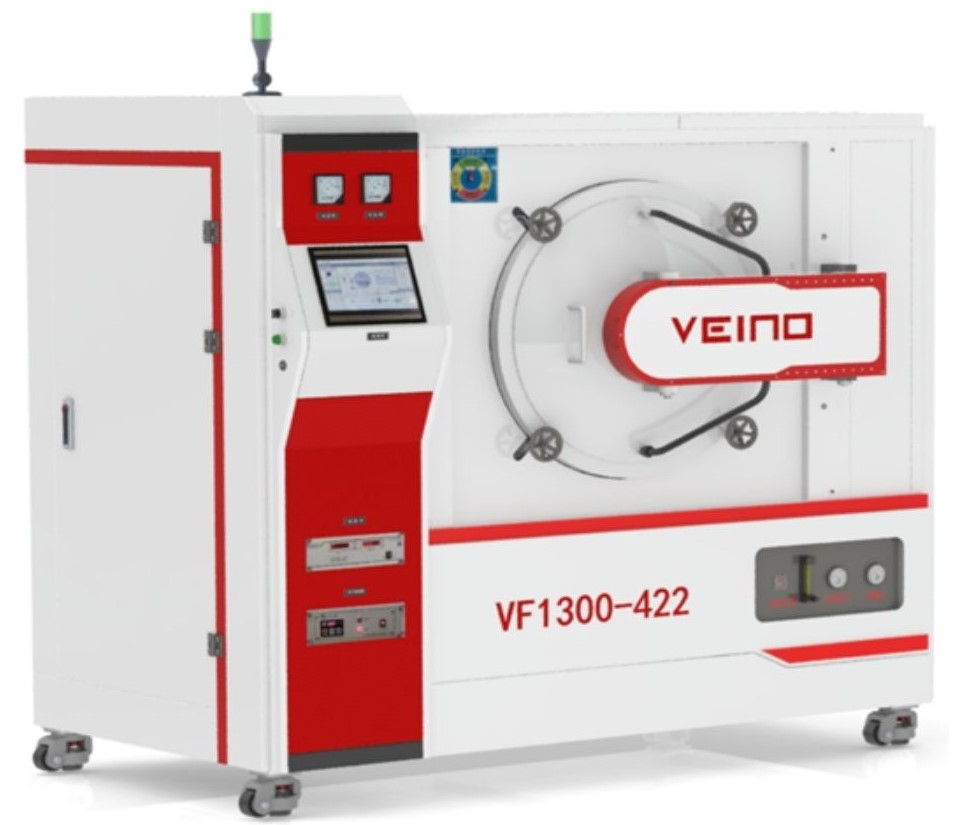

A vacuum hardening furnace is a type of heat treatment equipment used to harden steel under low-pressure or high-vacuum conditions. Unlike conventional atmosphere furnaces, the vacuum environment eliminates the presence of oxygen and reactive gases during heating. This prevents oxidation, surface scaling, and decarburization, which are common issues in traditional hardening processes.
During vacuum hardening, steel components are heated to their austenitizing temperature, typically in the range of 800 °C to 1050 °C, depending on the steel grade. Once the required temperature uniformity is achieved, the parts are rapidly quenched using high-pressure inert gases such as nitrogen, argon, or helium. This controlled quenching transforms the microstructure into hardened martensite while minimizing thermal stress.
Benefits of vacuum hardening on steel properties
One of the most important benefits of vacuum hardening is the significant increase in hardness and wear resistance. This makes the process ideal for tooling, dies, gears, and components exposed to repeated friction or mechanical contact.
At the same time, vacuum hardening ensures excellent core strength and toughness, allowing components to withstand heavy loads and impact without premature failure. Because the heating and cooling cycles are precisely controlled, the resulting microstructure is uniform, which directly contributes to improved fatigue resistance and longer component life.
Another major advantage is minimal distortion. Uniform temperature distribution and gas quenching reduce uneven thermal gradients, making vacuum hardening especially suitable for precision parts with tight dimensional tolerances.
Applications of vacuum-hardened steel components
Vacuum-hardened steel is used in various high-performance industries:
- Automotive Industry: Transmission gears, drive shafts, cam components, and critical engine parts
- Aerospace Sector: Landing gear assemblies, load-bearing structural parts, and precision components

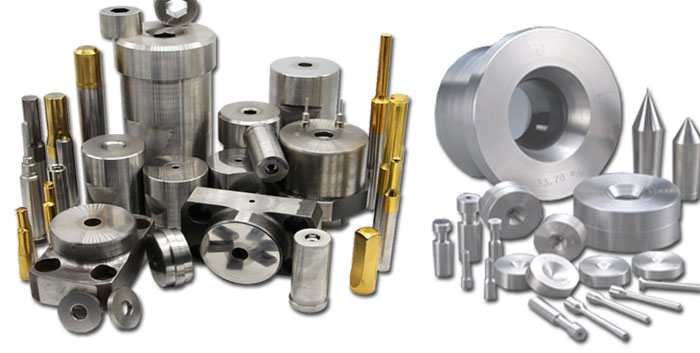

- Tool and Die Industry: Cutting tools, forming dies, punches, and industrial molds
- Medical Equipment: Surgical instruments, orthopedic implants, and precision medical components
- Energy and Power Sector: Turbine components, high-pressure valves, pump parts, and wear-resistant hardware
The vacuum hardening process in detail
The process begins with thorough pre-cleaning of the steel parts to remove oils and contaminants. The components are then loaded into the furnace, where they are gradually heated under vacuum to the required austenitizing temperature. A controlled soaking period ensures uniform heat penetration throughout the load. Quenching is carried out using pressurized inert gas, followed by optional tempering to adjust hardness and relieve internal stresses, depending on application requirements.
