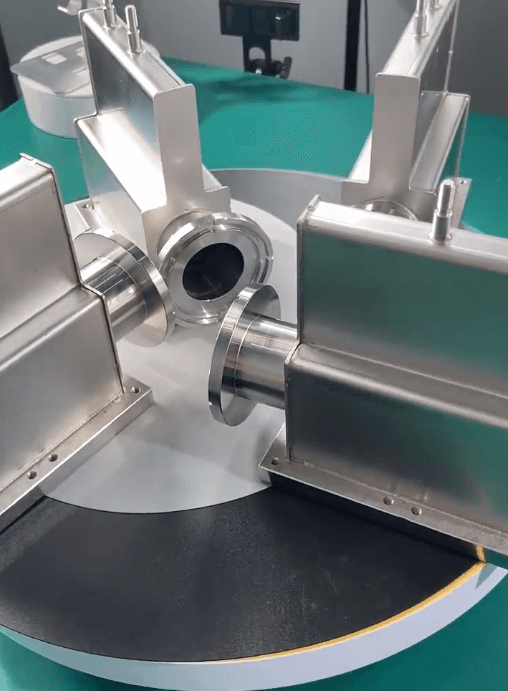

The finished vacuum-brazed assembly of 304 stainless steel vacuum chambers and precision flange components provides a clean, leak-tight, mechanically stable joint for demanding vacuum and high-purity applications. Using controlled high-vacuum brazing technology, complex chamber and flange assemblies can be joined with minimal distortion, excellent dimensional accuracy, and reduced surface contamination compared with conventional joining methods.
Advanced Vacuum Brazing Process

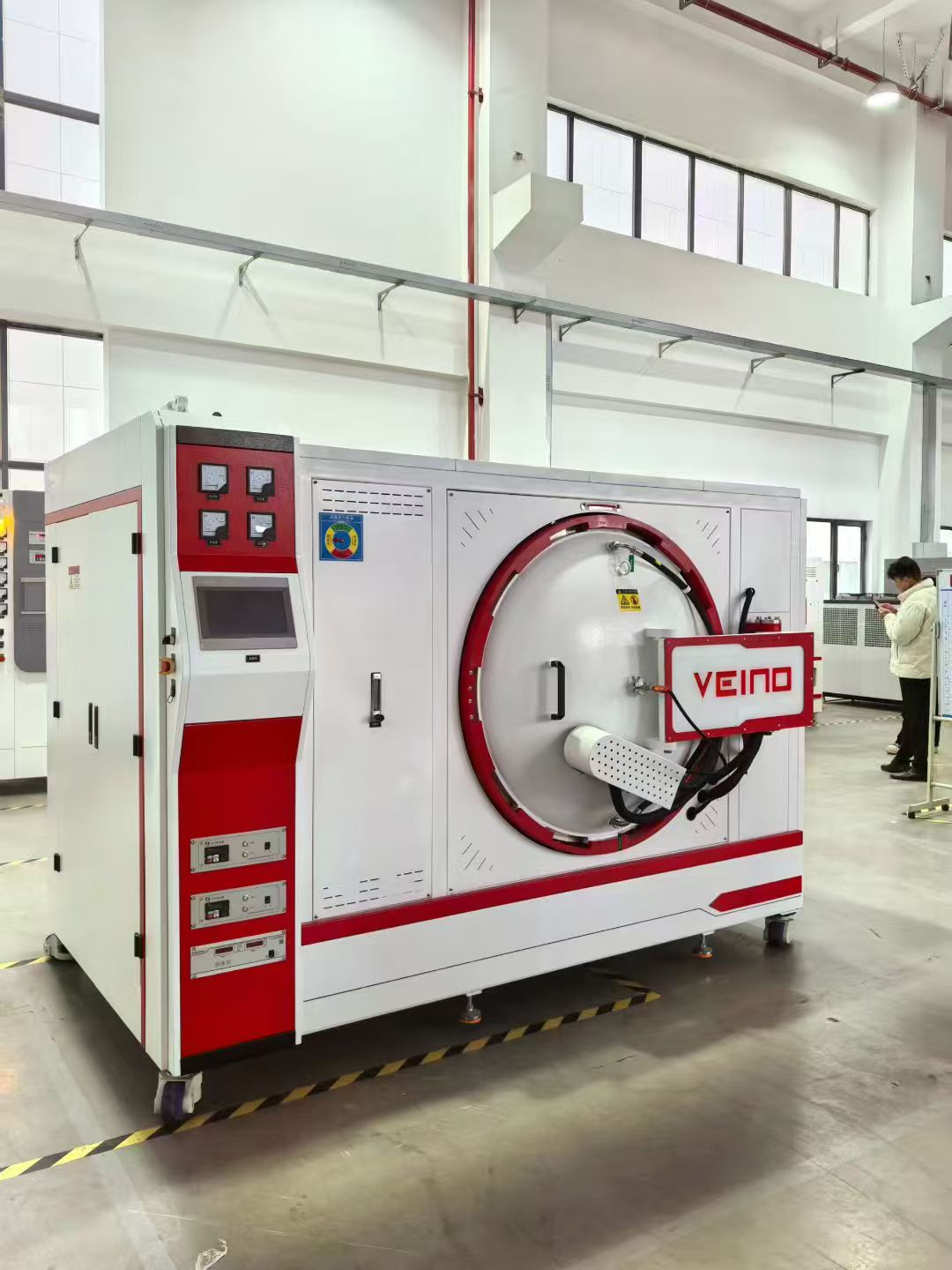

Before brazing, the 304 stainless steel chamber and flange components are precision-machined, thoroughly cleaned, degreased, and accurately aligned. A suitable vacuum-brazing filler metal is precisely positioned at the joint interface. The assembly is then processed in a high-vacuum furnace, where controlled heating promotes uniform filler-metal flow and capillary penetration throughout the joint.
The furnace atmosphere minimizes oxidation and contamination during brazing. Precisely controlled temperature profiles, vacuum levels, holding time, and cooling rates help achieve uniform metallurgical bonding, low distortion, dimensional stability, and reliable vacuum tightness. After brazing, the finished assembly can undergo dimensional inspection, visual inspection, and helium leak testing to verify joint integrity and vacuum performance.
Advanced Applications
These vacuum-brazed 304 stainless steel assemblies are used in semiconductor equipment, vacuum coating systems, aerospace, medical instruments, laboratories, and high-purity gas systems, including vacuum chambers, manifolds, and process equipment.
